Printout

Description

Manages settings panel when user has entered to the print mode.

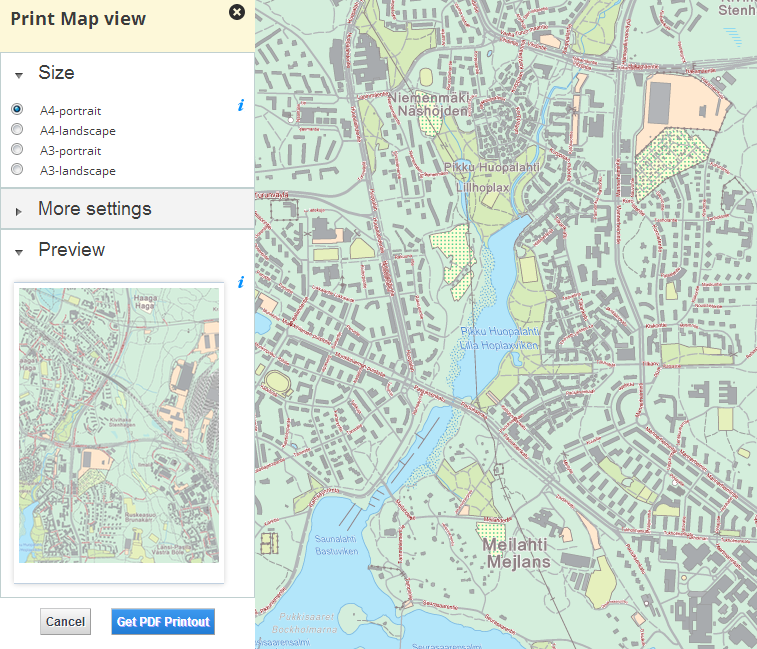

Screenshot

Bundle configuration

No configuration is required. Optional configuration is available for customized scale selection.

{
    "scaleSelection": true,
    "scales": [500,1000,10000,25000,50000,100000]
}

• scaleSelection is to show scale selection (defaults to false)
• scales define custom scales for scale selection, if not defined defaults to map scales

Requests the bundle handles

Request	How does the bundle react
printout.PrintMapRequest	Prints map with given selections

Requests the bundle sends out

Request	Why/when
DisableMapKeyboardMovementRequest	Disables keyboard listener for map movements
EnableMapKeyboardMovementRequest	Enables keyboard listener for map movements
userinterface.UpdateExtensionRequest	Bundle closes all flyouts when entering printing mode and its own flyouts when user clicks cancel button.

Events the bundle listens to

Event	How does the bundle react
AfterMapMoveEvent	Refresh print preview

Dependencies

Dependency	Linked from	Purpose
jQuery	Linked in portal theme	Used to create the component UI from begin to end
