analyse
Description
Bundle manages analyse parameter and data setups, requests analyse execute actions and stores analyse results to DB through backend action route.

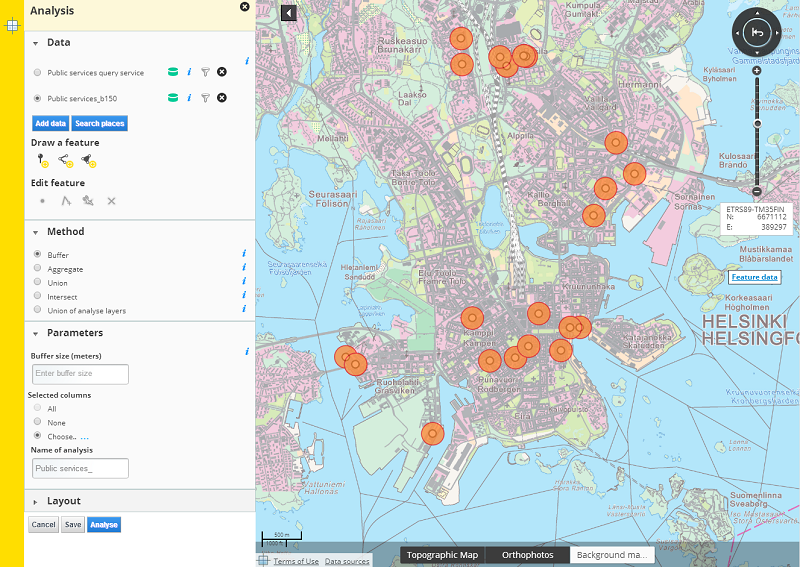

Screenshot
Bundle configuration
No configuration is required.
Bundle state
state : {
layerId : "{{id of the analysis layer or WFS layer}}",
method : "{{analyse method}}",
params : "{{{buffer_size, intersector, aggregate_function}}}",
styles : "{{{}}}",
propertymode : "{{all|none|columns}}",
columns : "{{column names, when propertymode is columns}}"
}
Requests the bundle sends out
| Request | Why/when |
| `userinterface.AddExtensionRequest` | Extends the basic UI view. |
Analyse view
| Request | Why/when |
| `userinterface.UpdateExtensionRequest` | Extends the basic UI view. |
| `catalogue.ShowMetadataRequest` | layer metadata info request |
| `DisableMapKeyboardMovementRequest` | for text input in flyout |
| `EnableMapKeyboardMovementRequest` | for text input in flyout |
Events the bundle listens to
| Event | How does the bundle react |
| `userinterface.ExtensionUpdatedEvent` |
Enters/exits the analysis mode. |
| `AfterMapLayerAddEvent` |
Refreshes the data panel |
| `AfterMapLayerRemoveEvent` |
Refreshes the data panel |
Dependencies
| Dependency | Linked from | Purpose |
| jQuery |
Version 1.7.1 assumed to be linked on the page |
Used to create the UI |
| OpenLayers |
Expects OpenLayers already to be linked |
Temp feature drawing and selected geometry editing |
| Oskari mapmodule |
Expects to be present in the application setup |
To gain control to OpenLayers map |
| Oskari mapanalysis |
Expects to be present in the application setup |
Needed to support the ANALYSIS layer type. |
