routingUI

Description

This bundle provides UI for routing. In this bundle user can select start and end points of route and then search route of between these points. Finally results are showed on the popup.

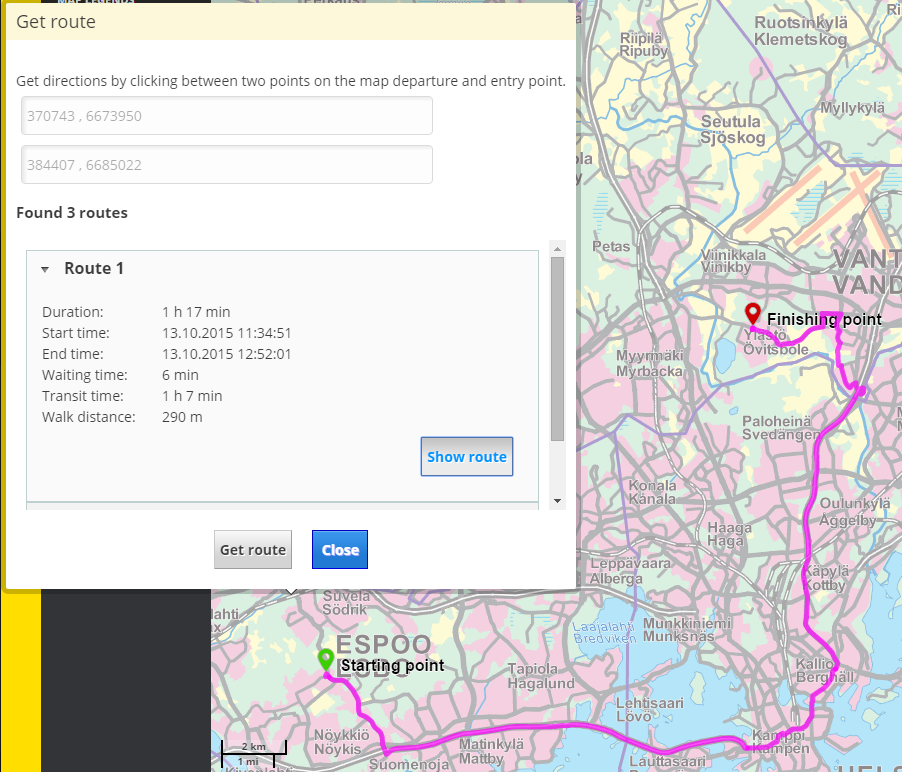

Screenshot

Bundle configuration

No configuration is required, but there is few possible configurations:

• Setting decimals for wanted decimals rounding for input box lon/lat values. For examples:

// Set all projections rounding rule
{
  "decimals": 6
}

// Set projection specified rounding rules
{
  "decimals" {
      "EPSG:4326": 5,
      "EPSG:3067": 0
  }
}

// Use default rounding rules, use empty decimals configuration. Then rounding decimal are map projection unit specified
{
}

Requests the bundle sends out

Request	Where/why it's used
`GetRouteRequest`	Get route plan.
`MapModulePlugin.AddFeaturesToMapRequest`	Add route plan geometry to map.
`MapModulePlugin.RemoveFeaturesFromMapRequest`	Remove route plan geometry from map.
`MapModulePlugin.AddMarkerRequest`	Add route start and end point to map.
`MapModulePlugin.RemoveMarkersRequest`	Remove route start and end points from map.

Events the bundle listens to

Event	How does the bundle react
`MapClickedEvent`	Updates the coordinates gotten from event to the UI.
`RouteResultEvent`	Updates the route plans to the UI.

Dependencies

Dependency	Linked from	Purpose
jQuery	Assumes to be linked in the page	Used to create the component UI from begin to end
Moment.js	Bundle	Used to format date/time
