analyse

Description

Bundle manages analyse parameter and data setups, requests analyse execute actions and stores analyse results to DB through backend action route.

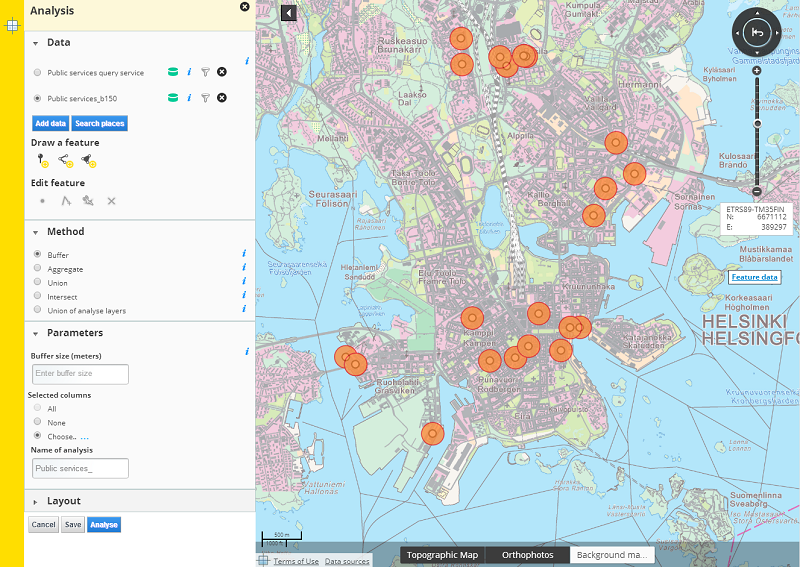

Screenshot

Bundle configuration

No configuration is required.

Bundle state

state : {
  layerId : "{{id of the analysis layer or WFS layer}}",
  method : "{{analyse method}}",
  params : "{{{buffer_size, intersector, aggregate_function}}}",
  styles : "{{{}}}",
  propertymode : "{{all|none|columns}}",
  columns : "{{column names, when propertymode is columns}}"
}

Requests the bundle sends out

Request	Why/when
`userinterface.AddExtensionRequest`	Extends the basic UI view.

Analyse view

Request	Why/when
`userinterface.UpdateExtensionRequest`	Extends the basic UI view.
`catalogue.ShowMetadataRequest`	layer metadata info request
`DisableMapKeyboardMovementRequest`	for text input in flyout
`EnableMapKeyboardMovementRequest`	for text input in flyout

Events the bundle listens to

Event	How does the bundle react
`userinterface.ExtensionUpdatedEvent`	Enters/exits the analysis mode.
`AfterMapLayerAddEvent`	Refreshes the data panel
`AfterMapLayerRemoveEvent`	Refreshes the data panel

Dependencies

Dependency	Linked from	Purpose
jQuery	Version 1.7.1 assumed to be linked on the page	Used to create the UI
OpenLayers	Expects OpenLayers already to be linked	Temp feature drawing and selected geometry editing
Oskari mapmodule	Expects to be present in the application setup	To gain control to OpenLayers map
Oskari mapanalysis	Expects to be present in the application setup	Needed to support the ANALYSIS layer type.
