wfsvector

Description

WfsVectorLayerPlugin is an alternative implementation of mapwfs2 that uses MVT vector tiles or geojson as data transfer mechanism. Requires module control-mvt to be in use in the backend. Currently supports functionalities:

• Displays WFS layer features on the map
• Shows feature infobox on click
• Notifies with events about currently visible feature properties (shown by Featuredata2 bundle in Feature Data flyout)
• Allows feature selection by feature id (WFSFeaturesSelectedEvent) or by geometry filter (WFSSetFilter)
• Temporary click interaction disabling (ActivateHighlightRequest)
• Layer styling
• Feature selection based on feature properties (WFSSetPropertyFilter)

Does not support:

• No special handling for "Manual refresh" type layers
• Sending of clicked feature geometry as event

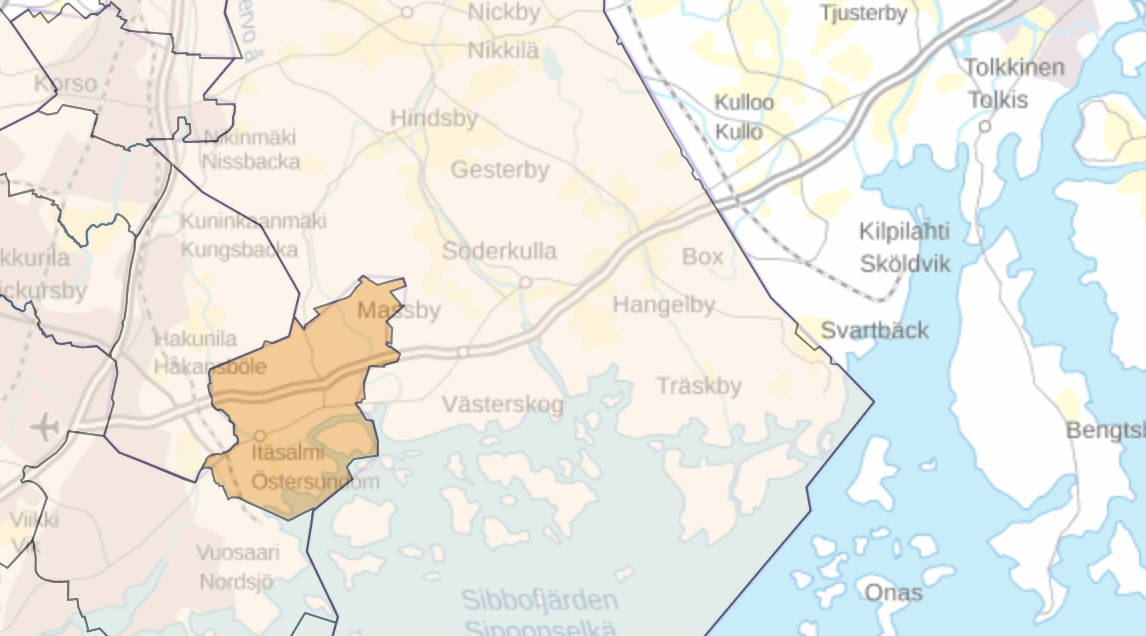

Screenshot

Plugin config

Property	Value type
renderMode	"mvt"|"vector"	origin	number[2]	resolutions	number[]	tileSize	number	minZoomLevel	number

{
  "renderMode": "mvt",
  "origin": [-548576, 8388608],
  "resolutions": [8192, 4096, 2048, 1024, 512, 256, 128, 64, 32, 16, 8, 4, 2, 1, 0.5, 0.25],
  "tileSize": 256,
  "minZoomLevel": 7
}

Requests the plugin handles

Request	How does the bundle react
WfsLayerPlugin.ActivateHighlightRequest	Disbale/enable map click selection interaction for WFS layers

Requests the plugin sends out

Request	Why/when
InfoBox.ShowInfoBoxRequest	Show clicked feature properties

Events the bundle listens to

Event	How does the bundle react
AfterMapMoveEvent	Updates feature properties visible.
AfterMapLayerAddEvent	Registers layer with WFS service.
AfterMapLayerRemoveEvent	Removes layer from WFS service.
WFSFeaturesSelectedEvent	Updates layer style to reflect selection.
MapClickedEvent	Open infobox or hilight feature (control-click)
MapLayerVisibilityChangedEvent	Update layer visibility.
AfterChangeMapLayerOpacityEvent	Update layer opacity.
WFSSetFilter	Apply geometry filter and select features.

Dependencies

Dependency	Linked from	Purpose
Oskari infobox	Oskari's InfoBoxBundle	That handles the infobox as an Openlayers popup with customized UI
